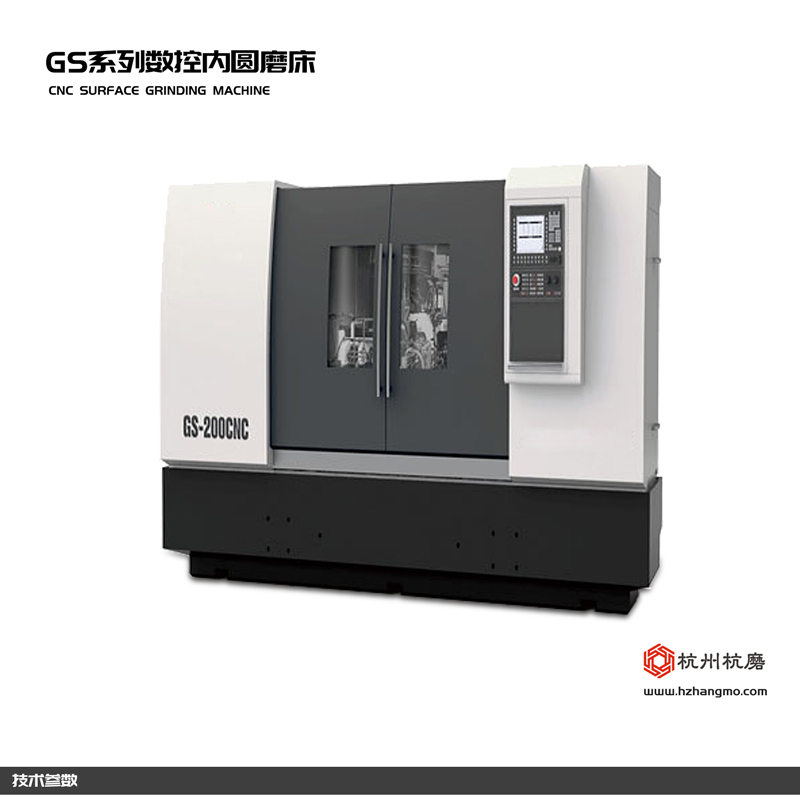

| 專案/機型Projec U model | GI-200CNC | GS-200CNC | GS-300CNC |
| 加工能力Processing capacity l | 研磨外徑Maximum grinding diameter | 0200mm | 0300mm | 0300mm |
| 內徑研磨範圈Inner diameter grinding range | 02~0150mm | 02~0200mm | 02~0200mm |
| 主輪臺旋徑Main wheel abutment diameter | 0300mm | 0350mm | 0350mm |
| 工件重量Maximum workpiece weight | 20kg | 40kg | 50kg |
| 主輪臺Main wheel | 夾爪型態Gripper type | 6油壓三爪夾頭6 hydraulic three jaw chuck | 6油壓三爪夾頭6 hydraulic three jaw chuck | 8"油壓三爪夾頭8"hydraulic three jaw chuck |
| x軸行程Xaxis travel | 500 | 600 | 700 |
| 快速移動速率m/minFast moving speed m/min | 10 | 10 | 10 |
| 進給量Minimum feed | 0.001 | 0.001 | 0.001 |
| 主輪臺主軸轉速(可調)rpmMain wheel spindle speed(adjustable) rpm | 0~1000 | 0~1000 | 0~1000 |
| ID砂輪頭(Z1軸)ID wheel head(Z1axis) | 內研磨砂輪尺寸Internal grinding wheel size | 02-0100 | 02-0100 | 02-0100 |
| 內研磨主軸轉速rpmInternal grinding spin de speed rpm | 20000/36000/50000 | 20000/36000/50000 | 20000/36000/50000 |
| z1軸行程Z1axis stroke | 380mm | 480mm | 580mm |
| 快速移動速率m/minFast moving speed m/min | 10 | 10 | 10 |
| 進給量Minimum feed | 0.001 | 0.001 | 0.001 |
| Id砂輪頭(Z2軸)ID wheel head(Z2axis) | 內研磨砂輪尺寸Inte mal grinding wheel size |
| 02-0100 | 02-0100 |
| 內研磨主軸轉速rpmInternal grind ng spindle speed rpm | - | 20000/36000/50000 | 20000/36000/50000 |
| Z2軸行程Z2axis stroke | - | 480mm | 580mm |
| 快速移動速率m/minFast moving speed m/min | - | 10 | 10 |
| 進給量Minimum feed | - | 0.001 | 0.001 |
| 切削液系統Cuting f uid system | 水箱容量LWater tank capacity L | 120 | 120 | 120 |
| 處理能力L/minProcessing capacity L/min | 20 | 20 | 20 |
| 泵浦馬達輸出功率kwPump motor output power kw | 0.18(4P) | 0.18(4P) | 0.18(4P) |
| 潤滑系統Lubrication system | 潤滑油箱容量LLubricant tank capacity L | 20 | 20 | 20 |
| 泵浦馬達輸出功率kwPump motor output power kw | 0.18(4P) | 0.18(4P) | 0.18(4P) |
| 油壓系統Hydraulic system | 油壓油箱容量LHydraulic oil tank capacity L | 60 | 60 | 60 |
| 泵浦馬達輸出功率HPPump motor output power HP | 2(4P) | 2(4P) | 2(4P) |
| 機臺外觀/尺寸/重量Machine appearance/size and weight | 機釿金Machine sheetmetal | 全密式飯金護罩 | 全密式金護罩 | 全密式金護罩 |
| 凈重/毛重kgsNet weght gross weight kgs | 2500/3200 | 2800/3500 | 3200/3800 |
| 包裝尺寸(長×寬×高)Packing size(length x width xheight) | 2400x2200x1900 | 2600x2400×1900 | 2800x2400x1900 |
